What else do you need?
You need a IC programmer to programming the program onto an IC.
You need a signal generator to produce the fundamental frequency.
You need a oscilloscope to monitor the wave form.
You need a voltmeter to measure the voltage.
You need a logic analyzer to observe the digital logic timing.
All your needs, AVR Programmer & Logic Analyzer & Oscilloscope & UART Analysis & Voltmeter & Signal Generator & PWM Generator & Logic Testing, are now fulfilled in a single chassis.
Never doubt it! All the above functions are offered in a single USB Multi-Programmer.
USB ISP Multi Programmer is a development tool of eight functional modules.
(1) IC Programmer
(2) Logic Test
(4) Signal Generator
(5) PWM Generators
(6) Logic Analyzers
(8) UART Analysis.
(9) USB to I2C/SPI Converter......New Function
The software has seven I2C commands format.
You can assemble what you want to send I2C commands directly.
Provide VB2008 USB to I2C/SPI Test Program source code.
Besides the power it requires is supplied by USB port; therefore, no extra power is needed.There is a polymer resettable fuse circuit on USB multi-programmer to protect a computer USB port. The product needs to be assembled and soldered by yourself. Works with all flavours of Windows 2000/XP/Vista/Win7.
1. IC Programmer:
ATmega8(L), ATmega16(L), ATmega32(L), ATmega64(L) .
ATmega88, ATmega168. ....... Arduino USB Programmer
24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C128, 24C256, 24C512.
2. Logic Test:
Eight Channels, measure Logic-0/Logic-1.
The voltage Range is 0V~16V.
4. Signal Generator:
The output frequency is between 1Hz and 100KHz, the square-wave signal output.
5. PWM Generator:
The output frequency is 2.9 KHz, Duty Range[1:255].
6. Logical Analyzer:
We have eight sampling channels of sampling depth 384 bits. It includes two trigger modes, “Internal Clock (Trigger ON or Trigger OFF)” and” External Clock (Clock H-> L or Clock L-> H)”. In Internal Clock Mode, the sample rate is 150 KHz, 100 KHz, 60 KHz, 50 KHz, 20 KHz, 10 KHz, 5 KHz and 3 KHz. In External Clock Mode, the maximum External Input Clock is 150 KHz..
It has only one channel of depth 384 bytes. The maximum sample rate is 150 KHz, and the measure voltage range is between 0V and 16V. The horizontal axis (time) range is 0.1 mS, 0.2 mS, 0.4 mS, 1 mS, 10 mS, 50 mS, 0.5 S and 2 S, and the vertical axis (voltage) range is between 1 V and 2 V.
The transmission rate is 4800 bps, 9600 bps and 115200 bps, the data format is 1 Start bit, 8 Data bits and 1 Stop bit, and TX/RX Buffer is 16 bytes.

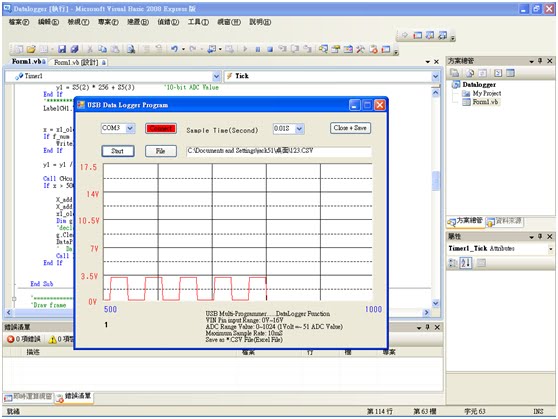

Support data logger function：
It can read VIN Pin, and the Maximum Sample rate is 0.01S(10ms),
besides it provide the function of saving as CSV file(easy for used Excel) and Visual Basic 2008 data logger source code.
